The CMR-5975 Digicast Media Router S2 is the next-generation replacement for the widely deployed CMR-5970, introducing substantial improvements across hardware, management, and reliability.
It now supports 1:1 redundancy for mission-critical networks, features an enhanced LNB power circuit configurable to 0V, 13V, and 18V delivering 600mA sustained (vs. 350mA previously) with integrated short-circuit protection, and offers expanded SNMP monitoring including Eb/No, Es/No, lock state traps, and redundancy switchover events.
Built on a next-generation hardware platform, the unit features a lightweight aluminum chassis that significantly decreases weight to just 600g, a larger FPGA for future-proof processing headroom, and full RoHS compliance. At its core is an embedded architecture based on the FreeScale MPC859 CPU running the eCOS real-time operating system.
The router provides an integrated Web Server, Streaming Media Server, and File Server to deliver IP multimedia directly to a Desktop PC or LAN, making it ideal for enterprise distribution, ISP backhaul, and digital signage over satellite.
TECHNICAL SPECIFICATIONS
L-Band Tuner: DVB-S 2-45 Msps FEC 1/2,2/3,3/4,5/6,7/8; DVB-S2 QPSK 2-32 Msps FEC 1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10; DVB-S2 8PSK 2-32 Msps FEC 3/5,2/3,3/4,5/6,8/9,9/10
Input Level: Minimum -50 dBm, Maximum -25 dBm
Frequency: L-Band 950-2150 MHz typical
Performance: Max 83 Mbps (1518 byte packets), Latency <10ms, Symbol Rate Min 2 Msps Max 45 Msps DVB-S / 32 Msps DVB-S2
IP: MPE Section Packing and Non-Section Packing PID-by-PID, 64 PIDs, 8192 range, MPEG-2 188/204-byte, 802.1Q VLAN, IGMP Multicast, Unicast Routing, Transport Stream over IP
Ethernet: 10/100 BaseT RJ-45, IEEE 802.3u, rates up to 83 Mbps
LNB Power: Configurable 0V /13V/18V, 600mA sustained, short circuit protection

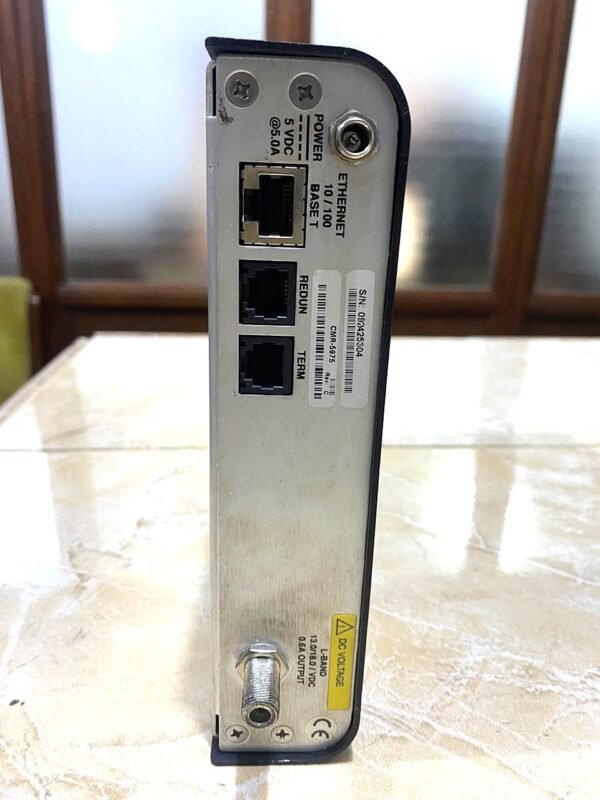

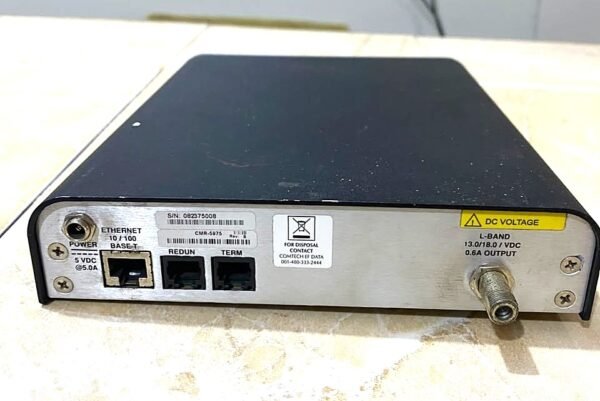

Interfaces: L-Band Input F-Type 75Ω, Ethernet RJ-45, Terminal RJ-12 RS-232, Redundancy RJ-12 RS-232, Power 2.5mm screw type
Management: Web Interface, TFTP field upgrade, Terminal Interface, Telnet, SNMP V2 (Private and MIB II) with Eb/No, Es/No, lock state traps, redundancy switchover, Vload, Syslog, Configurable Telnet/HTTP ports, Color LEDs
Power: 100 to 240 VAC 47/63 Hz converted to +5VDC @5A / <25W via SPU30-102 Power Supply
Temperature: Operating 32° to 104°F (0° to 40°C), Storage -22° to 150°F (-30° to 65°C)
Humidity: Operating 10% to 75% non-condensing, Storage up to 95% at ≤95°F (35°C)
Altitude: Operating up to 10,000 ft (3048m), Storage up to 50,000 ft (15240m) 15 hours
Compliance: FCC Class A, EN55022 Class A, EN61000-4-2/3/4/5/11, EN61000-3-2/3, EN60950, RoHS 2002/95/EC, Class B product
PHYSICAL ATTRIBUTES
Dimensions: 8.75 inch L x 7.125 inch W x 1.625 inch H (22.225 cm L x 18.0975 cm W x 4.1275 cm H)
Weight: 1.6 lbs (0.6 kg / 600 grams) unit only / approx 2.5 lbs (1134 grams) with power supply
Colour: Silver / Aluminum chassis, Black front panel
Material: Aluminum chassis (new vs old), lightweight

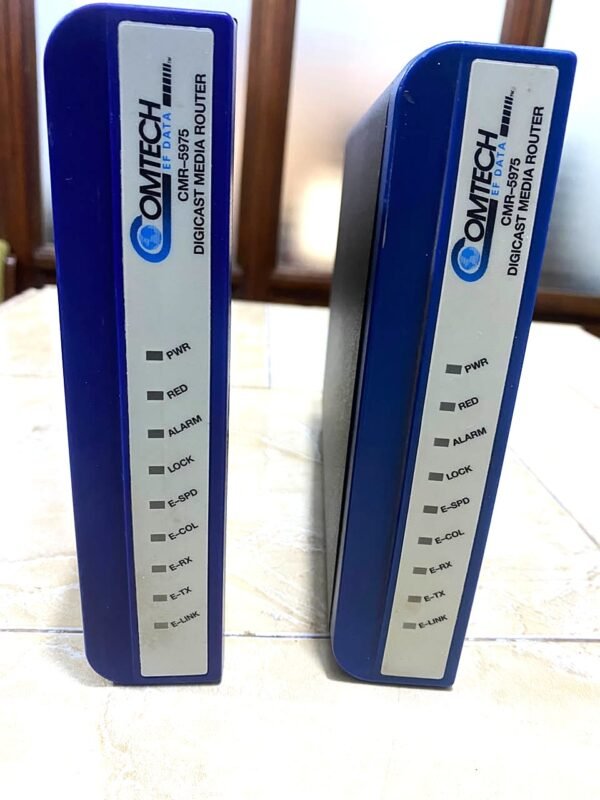

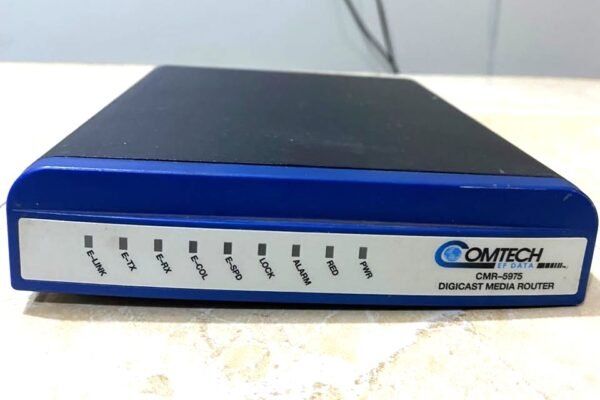

LEDs: Blue PWR, Green RED redundancy, Red ALARM flashing, Green LOCK steady, Green E-SPD speed, Amber E-COL collision, Green E-RX receive, Green E-TX transmit, Green E-LINK link
Warranty: 2 Years from Comtech EF Data
KEY FEATURES
– DVB-S and DVB-S2 L-Band to IP with up to 83 Mbps Ethernet output
– 64 PIDs with MPE Section Packing / Non-Section Packing PID-by-PID filtering
– 1:1 Redundancy ready for high-availability networks
– Enhanced LNB power 0/13/18V @ 600mA with short-circuit protection
– VLAN (802.1Q), IGMP Multicast, Unicast Routing, TS over IP support
– Embedded FreeScale MPC859 + eCOS OS with Web, Streaming & File Servers
– SNMP V2, Syslog, TFTP upgrade, Telnet, configurable ports
– Ultra-compact 8.75″ chassis, 600g, <25W power consumption
– RoHS compliant aluminum design, larger FPGA
WHAT’S IN THE BOX
1x CMR-5975 MR-S2, 1x SPU30-102 Power Supply, 1x IEC Power Cable, 1x CA-TERMINAL cable, 1x Quick Start sheet
IDEAL FOR
Enterprise satellite IP distribution, ISP satellite backhaul, corporate multicast, digital signage and kiosk networks, DVB-S/S2 to LAN bridging where a compact, low-power, carrier-grade L-Band to Ethernet router is required. Perfect drop-in upgrade for legacy CMR-5970 deployments needing DVB-S2 and redundancy.
