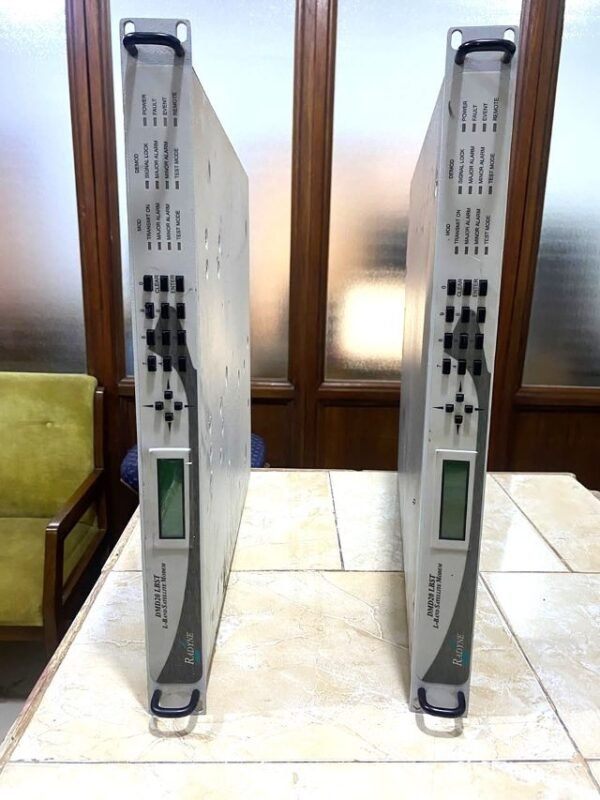

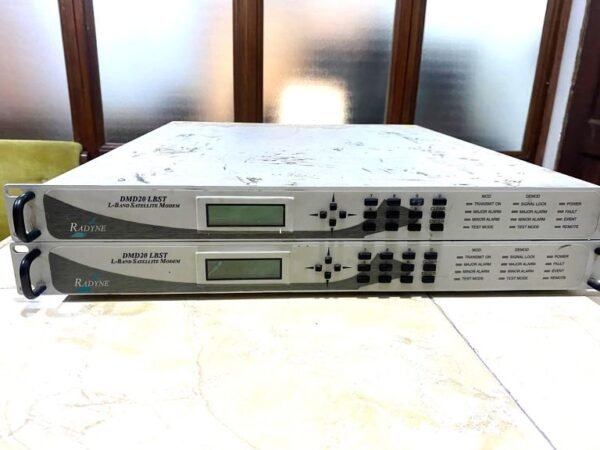

The Radyne DMD20 LBST breaks new ground in flexibility, operation and cost. As a Universal Satellite Modem and ODU Driver, it supports all major satellite standards – IDR, IBS, and DVB – covering data rates up to 20 Mbps and virtually all Satellite IP, Telecom, Video, Internet, Corporate VSAT, Cellular Backhaul and Broadcast applications.
Unique in its class, the DMD20 LBST can switch between spur-free 70/140 MHz IF and full L-Band 950-2050 MHz operation without configuration changes, providing true investment protection. It offers DoubleTalk® Carrier-in-Carrier bandwidth compression based on patented Adaptive Cancellation technology that allows Tx and Rx carriers to share the same transponder space – effectively doubling throughput. Includes FSK Communications Link for monitor and control of smart BUCs / LNBs.
Technical Specifications
Highlights
- Integrated 10 MHz High-Stability Reference
- Programmable LNB Voltage: 13, 15, 18, 20 VDC @ 750mA max
- BUC Power: Optional 24 VDC @ 4A max, 48 VDC optional for up to 10W BUC
- L-Band Operation: 950-2050 MHz Tx/Rx in 1Hz steps
- Modulation: BPSK / QPSK / OQPSK / 8PSK / 16QAM (optional)
- Data Rates: 2.4 Kbps to 20 Mbps in 1 bps steps
- FEC: Viterbi, Reed-Solomon, Sequential, Trellis, Turbo, Product Code, LDPC
- Fully User-Programmable with excellent spurious performance
- Compliant: IESS 308/309/310/314/315, Optional DVB EN301-210 / EN300-421
Modulator
Modulation: BPSK, QPSK, OQPSK, 8PSK, 16QAM (optional)
L-Band Tuning: 950-2050 MHz, 1Hz steps
Impedance: 50 Ohm
Connector: Type N Female
Return Loss: 10 dB min
Output Power: 0 to -25 dBm, Accuracy ±1.0 dB
Spectrum: IESS 308/309/310 compliant
Spurious: -55 dBc in-band, -45 dBc out-of-band
Harmonics: -45 dBc, On/Off: >60 dB
Scrambler: V.35 or IBS
FEC: Viterbi K=7 1/2, 3/4, 7/8; Trellis 2/3; Turbo Product Code per IESS-315; BPSK 21/44; QPSK/OQPSK 1/2, 3/4, 7/8; 8PSK/16QAM 3/4, 7/8; Legacy Turbo 0.495, 0.793
Outer Code: Reed-Solomon INTELSAT, DVB-S Optional, Custom (N,K)
Data Clock: Internal, External, Rx Recovered, Stability 5×10⁻⁸
BUC: 24V@4A max (48V opt), 10 MHz Reference 3 dBm ±3 dB
Demodulator
Demodulation: BPSK, QPSK, OQPSK, 8PSK, 16QAM (optional)
L-Band Tuning: 950-2050 MHz (also 950-1750 MHz IF 70/140 MHz), 1Hz steps
Impedance: 50 Ohm
Connectors: Type N Female, SMA for L-Band
Return Loss: 10 dB min L-Band, 14 dB min IF
Spectrum: IESS 308/309/310 compliant
Input Level: 10×log(Symbol Rate) – 100 ±12 dBm
Total Input Power: -10 dBm or +40 dBc lesser @ 64Kbps
Acquisition Range: Programmable ±1 kHz to ±255 kHz, Sweep Delay 100ms to 6000s
LNB Reference: 10 MHz 3 dBm
LNB Voltage: 13/15/18/20 VDC 750mA programmable
Plesiochronous Buffer: 0ms to 64ms, centering automatic
Clock: Transmit External, Rx Recovered, SCT Internal
Drop and Insert (Optional)
Terrestrial Data: 1.544 Mbps (T1) or 2.048 Mbps (E1) G.732/733
Line Coding: AMI or B8ZS for T1, HDB3 for E1
Framing: D4, ESF, PCM30/31
Time Slot Selection: n × 64 contiguous or arbitrary – TS1,2,3,4,5,6,8,10,12,15,16,20,24,30,31 etc.
Satellite Overhead: 6.6% open, 0.4% closed

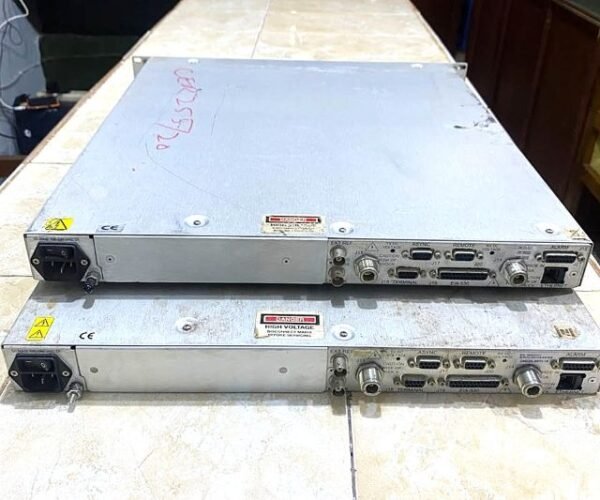

Terrestrial Interfaces
DVB: ASI / SPI
HSSI, Ethernet: 4 Port 10/100 Base-T, HSSI/Ethernet Combo 4 Port
G.703 T1: 1.544 Mbps, 100 Ohm Balanced
G.703 E1: 2.048 Mbps, 75 Ohm unbalanced & 120 Ohm Balanced, HDB3
G.703 T2: 6.312 Mbps, 75 Ohm
G.703 E2: 8.448 Mbps, 75 Ohm BNC
IBS/Synchronous: RS-422/-530 All Rates Differential DCE
ITU V.35: All Rates
RS-232 DCE: Up to 200 Kbps
IDR/ESC Interface: Optional
HSSI/G703: T1/E1/T2/E2 combined
Configuration, Monitor & Control
- Fully User-Programmable, Excellent Spurious Performance
- Compliant: IESS 308/309/310/314/315, DVB EN301-210 / EN300-421
- Industry-Standard Universal Interface Module
- Standard Features: Reed-Solomon, Asynchronous Overhead, Automatic Uplink Power Control, CM701 Compatible Satellite Control Channel
- Hardware Options: Turbo FEC, Sequential FEC, DC Input 48VDC, High-Stability Reference, Drop & Insert, Interface Options, DVB-S
- Software Options: Data Rate Upgrades, IDR, IBS, 8PSK, 16QAM, DVB-S
- Remote: RS-485, Terminal: RS-232, Ethernet 10 Base-T Web Browser, RLLP Radyne Link Level Protocol, SNMP via Ethernet, Two-line backlit LCD, terminal software on PC/laptop, entire M&C on big screen
- FSK Communications Link for smart BUCs – monitor and control BUC from modem front panel
BER Performance (Summary)
Viterbi K=7: Excellent Eb/No performance per IESS specs – e.g. QPSK 1/2 @ ~4.5 dB, 3/4 @ ~5.8 dB, 7/8 @ ~6.8 dB; BPSK/Turbo/RS combined for enhanced coding gain. Refer to full Radyne DMD20 datasheet for complete BER curves.
Physical Attributes
Dimensions: 19″ W × 19.25″ D × 1.75″ H (48.26 cm × 48.89 cm × 4.45 cm) – 1RU 19″ rack mountable
In Inches: 19″ W × 19.25″ D × 1.75″ H (alt. 16 × 16 × 1.75″ chassis)
In cm: 48.26 × 48.89 × 4.45 cm
Weight: 8.5 pounds (3.83 kg / 3830 grams) – 6.5 lbs (3.0 kg) without options, approx 8.5 lbs fully configured
Colour: Black / Dark Grey front panel with silver chassis
Material: Metal chassis
Power: Prime Power 100-240 VAC 50-60 Hz, 150 Watts max with 10W BUC, Optional 48VDC
Environmental: Operating 0 to 50°C, 95% humidity non-condensing; Storage -20 to 70°C, 99% humidity
Warranty: 2 Years typical
What’s in the Box
- 1× DMD20 LBST Modem Unit
- 1× AC Power Cable (100-240V)
- 1× Compact Flash 128/256 Mbit (with firmware)
- 1× User Manual / Quick Start Guide
Ideal For
Satellite IPTelecomVideo / BroadcastInternet / ISPIDR / IBS / DVBCorporate VSATCellular Backhaul
Key Features – 12 Points
- Universal L-Band Operation – 950-2050 MHz Tx/Rx in 1Hz steps, switches between 70/140 MHz IF and L-Band without config changes.
- Wide Data Rate Range – 2.4 Kbps to 20 Mbps in 1 bps increments, fully programmable.
- Advanced Modulation – BPSK, QPSK, OQPSK, 8PSK, 16QAM for maximum spectral efficiency.
- Comprehensive FEC Suite – Viterbi, Reed-Solomon, Sequential, Trellis, Turbo, TPC, LDPC plus DoubleTalk® Carrier-in-Carrier for 2× bandwidth saving.
- Integrated High-Stability Reference – Internal 10 MHz reference with LNB/BUC reference outputs (3 dBm).
- Complete ODU Driver – Programmable LNB 13/15/18/20V @750mA and BUC 24V@4A / 48V optional up to 10W with FSK M&C link.
- Standards Compliant – Fully compliant to IESS 308/309/310/314/315 and DVB EN300-421 / EN301-210 (optional).
- Spur-Free Performance – Excellent spurious: -55 dBc in-band, -45 dBc out-of-band, >60 dB on/off.
- Flexible Terrestrial Interfaces – DVB ASI/SPI, HSSI, 4× 10/100 Ethernet, G.703 T1/E1/T2/E2, RS-422/530, V.35, RS-232, Drop & Insert.
- Smart Network Management – Front panel LCD, RS-232/RS-485 terminal, Web Browser via 10Base-T, SNMP, RLLP, AUPC, Async overhead channel.
- 1RU Rugged Design – 19″ rack mountable, 1.75″ H, 8.5 lbs, 100-240 VAC or 48VDC, 0-50°C operation.
- Proven for Critical Links – Ideal for Satellite IP, Telecom, Video, Internet, IDR/IBS/DVB, VSAT, Cellular Backhaul.
